Application Area
⮞ Petrol & Oil Burning
⮞ Offices & Banks
⮞ Light Manufacturing
⮞ Machining Operations
⮞ Welding Areas
⮞ Warehouses
⮞ Gas/fueling Stations
⮞ Hotels
⮞ Paint Processing Areas
⮞ Schools
⮞ Restaurants
⮞ Parking
⮞ Garages
⮞ Material Hanling
⮞ Vehicles Maintenance Facilities
⮞ Construction Sites
⮞ Propane Filling And Storage
⮞ Repair Shops
⮞ Electrical Equipment Rooms
Key Features
⮞ Conformity to IS 16018:2012
⮞ BIS Approved and ISI marked
⮞ Hydraulically tested as per standard and passed through anti-corrosive treatment
⮞ High quality Pure Polyester (PP) powder coating (UV Resistant)
⮞ Brass caps, drain plugs, ball valve conforms to IS:319
⮞ Aluminum alloy nozzle conforms to IS:617
⮞ Controllable discharge
⮞ Easy to maintain, recharge & service
⮞ PVC braided discharge hose
⮞ MAP Mono Ammonium Phosphate 50% dry chemical powder confronts to IS 14609 capable of fighting against class A, B, C & Electrically started fires.
Available Sizes

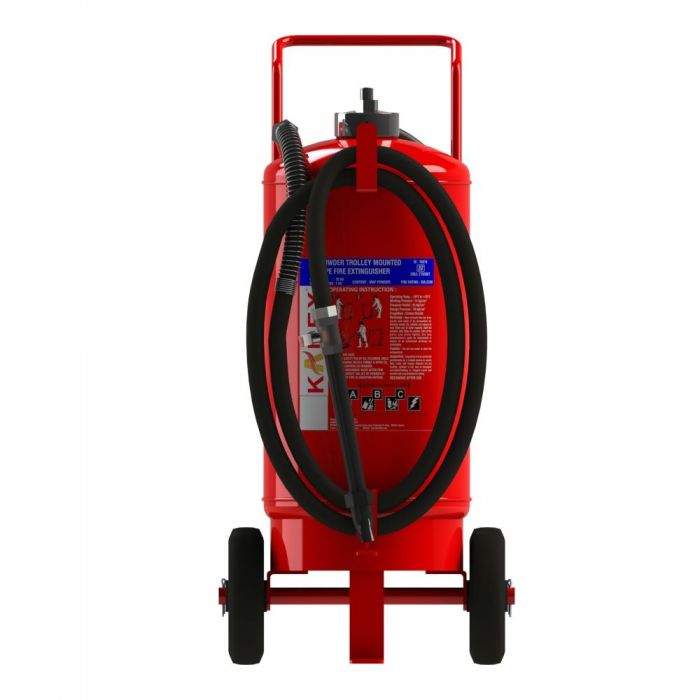

25 KG ABC Fire Extinguisher (Map 50 Based Mobile)
| MODEL | KFDRQ-25-50% | ||
|---|---|---|---|
| Capacity | 25 kg | Design | Hose & Nozzle |
| Fire Rating | 20A:233B | Height (Approx.) | 980 mm |
| Diameter (Approx.) | 300±10 mm | Average Discharge Time | 32 Sec |
| Average Range of throw | 6 m | Average Discharge | 90% |
| Operating Temperature | -30 °C to +55 °C | Service/Max. service/Test Pressure | 15 / 18 / 35 bar |
| Expelling Agent | Co2 | Full Weight (Approx.) | 84 kg |
| Empty Weight (Approx.) | 59 kg | Shipping Weight (Approx.) | 85 kg |
| Approvals | BIS |
50 KG ABC Fire Extinguisher (Map 50 Based Mobile)
| MODEL | KFDRQ-50-50% | ||
|---|---|---|---|
| Capacity | 50 kg | Design | Hose & Nozzle |
| Fire Rating | 20A:233B | Height (Approx.) | 1020 mm |
| Diameter (Approx.) | 400±10 mm | Average Discharge Time | 40 Sec |
| Average Range of throw | 7.5 m | Average Discharge | 92.5% |
| Operating Temperature | -30 °C to +55 °C | Service/Max. service/Test Pressure | 15 / 18 / 35 bar |
| Expelling Agent | Co2 | Full Weight (Approx.) | 120 kg |
| Empty Weight (Approx.) | 70 kg | Shipping Weight (Approx.) | 122 kg |
| Packing Standard | 92.5% | Approvals | BIS |
75 KG ABC Fire Extinguisher (Map 50 Based Mobile)
| MODEL | KFDRQ-75-50% | ||
|---|---|---|---|
| Capacity | 75 kg | Design | Hose & Nozzle |
| Fire Rating | 20A:233B | Height (Approx.) | 1030 mm |
| Diameter (Approx.) | 400 ±10 mm | Average Discharge Time | 51 Sec |
| Average Range of throw | 8 m | Average Discharge | 93.5% |
| Operating Temperature | -30 °C to +55 °C | Service/Max. service/Test Pressure | 15 / 18 / 35 bar |
| Expelling Agent | Co2 | Full Weight (Approx.) | 150 kg |
| Empty Weight (Approx.) | 75 kg | Shipping Weight (Approx.) | 152.5 kg |
| Approvals | BIS |
