Application Area
⮞ Petrol & Oil Burning
⮞ Offices & Banks
⮞ Gas/fueling Stations
⮞ Hotels
⮞ Paint Processing Areas
⮞ Schools
⮞ Restaurants
⮞ Material Handling Areas
⮞ Vehicles Maintenance Facilities
Key Features
⮞ UL listed high quality MAP 90% powder capable of fighting class A,B,C & Electrical fires
⮞Unique gauge testing system (UGTS) mechanism
⮞CE marked , brass chrome plated valve
⮞Smooth finish SS body gives aesthetic impression.
⮞Helium Leak detection tested for leakage, leak rate upto 1X10-8 mbar.l/sec.
⮞Lever lock for better handling.
⮞Bar Code labeling for better traceability.
⮞Welding Procedure approved by TPI with 6G.
⮞Latest BIS approved – (IS 15683:2006), ISI marked and CE marked.
⮞Tamper seal to detect any mishandling.
⮞Stainless steel anti corrosive body.
⮞Large loop stainless Pull pin.
⮞More flexible EPDM hose.
⮞Easy to maintain, recharge & service.
⮞Best available Fire ratings in its class with 5 years warranty.
Available Sizes

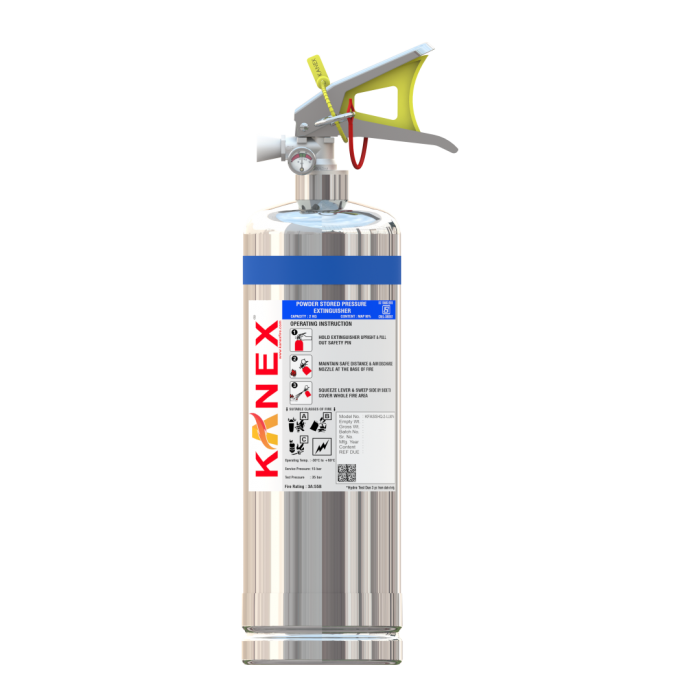

2 KG ABC SS Body Fire Extinguisher (Map 90 Based Portable Stored Pressure)
| MODEL | KFASSHQ-2-UL90% | ||
|---|---|---|---|
| Capacity | 2 kg | Design | Nozzle |
| Fire Rating | 3A:55B | Height (Approx.) | 440 mm |
| Diameter (Approx.) | 100±10 mm | Average Discharge Time | 14 Sec. |
| Average Range of throw | 2 m | Average Discharge | 93% |
| Operating Temperature | -30 °C to +60 °C | Service/Max. service/Test Pressure | 15 / 17 / 35 bar |
| Expelling Agent | Nitrogen (UHP Grade) | Full Weight (Approx.) | 3.6 kg |
| Empty Weight (Approx.) | 1.6 kg | Shipping Weight (Approx.) | 3.7 kg |
| Packing Standard | 2 in 1- 21″X6.75″X14.10” | Mounting Bracket | Wall bracket |
| Approvals | BIS & CE |
4 KG ABC SS Body Fire Extinguisher (Map 90 Based Portable Stored Pressure)
| MODEL | KFASSHQ-4-UL90% | ||
|---|---|---|---|
| Capacity | 4 kg | Design | Hose & Nozzle |
| Fire Rating | 4A:144B | Height (Approx.) | 500 mm |
| Diameter (Approx.) | 140±10 mm | Average Discharge Time | 18 Sec. |
| Average Range of throw | 3 m | Average Discharge | 92% |
| Operating Temperature | -30 °C to +60 °C | Service/Max. service/Test Pressure | 15 / 17 / 35 bar |
| Expelling Agent | Nitrogen (UHP Grade) | Full Weight (Approx.) | 6.4 kg |
| Empty Weight (Approx.) | 2.4 kg | Shipping Weight (Approx.) | 6.7 kg |
| Packing Standard | 2 in 1- 21″X6.75″X14.10” | Mounting Bracket | Wall bracket |
| Approvals | BIS & CE |
6 KG ABC SS Body Fire Extinguisher (Map 90 Based Portable Stored Pressure)
| MODEL | KFASSHQ-6-UL90% | ||
|---|---|---|---|
| Capacity | 6 kg | Design | Hose & Nozzle |
| Fire Rating | 6A:183B | Height (Approx.) | 550 mm |
| Diameter (Approx.) | 150±10 mm | Average Discharge Time | 24 Sec. |
| Average Range of throw | 5 m | Average Discharge | 93% |
| Operating Temperature | -30 °C to +60 °C | Service/Max. service/Test Pressure | 15 / 17 / 35 bar |
| Expelling Agent | Nitrogen (UHP Grade) | Full Weight (Approx.) | 8.7 kg |
| Empty Weight (Approx.) | 2.7 kg | Shipping Weight (Approx.) | 9.1 kg |
| Packing Standard | 2 in 1- 22.5″X6.75″X14.10” | Mounting Bracket | Wall bracket |
| Approvals | BIS & CE |
