Application Area
⮞ Offices & Banks
⮞ Welding Benches
⮞ Transformers
⮞ Paint & Varnish Booths
⮞ Oil Fill-In Stations
⮞ Fuel & Liquid Storage
⮞ Automobile Garages
Key Features
⮞ High quality MAP 90% powder
⮞ Unique Gauge Testing System (UGTS) mechanism
⮞ Brass chrome-plated discharge sprinkler
⮞ Tough interior and exterior coating with pure polyester (PP) powder
⮞ Automatic detection and suppression in a single unit
⮞ Extinguisher shells 100% factory hydro-tested beyond 35 bar
⮞ Expelling agent: UHP (Ultra High Pure) grade nitrogen
⮞ Anti-corrosive phosphate-treated modules
⮞ Provides protection during emergencies and power failure without backup
⮞ Easy, economical maintenance, service, and recharge
⮞ Bar code labeling for better traceability
Available Sizes

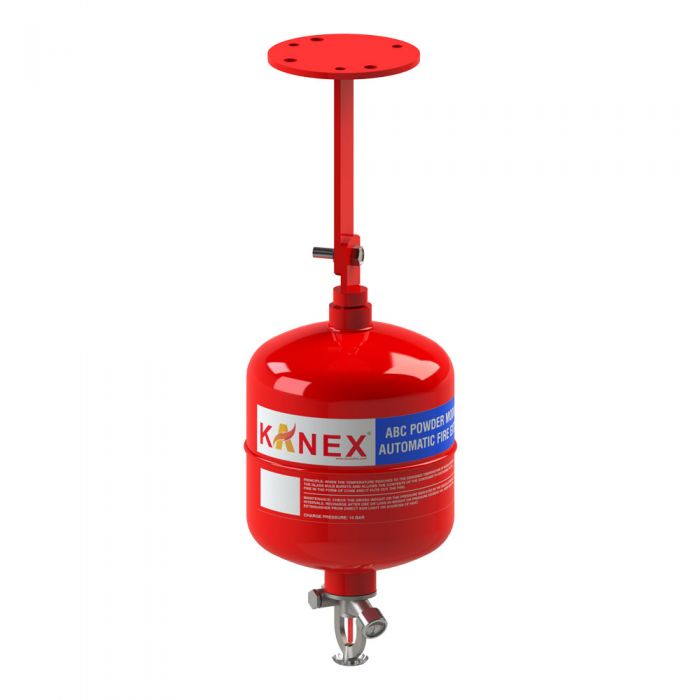

| MODEL | KMPRQ-2-90 | ||
|---|---|---|---|
| Capacity | 2 kg | Design | Ceiling Mounted |
| Height (Approx.) | 380 mm | Diameter (Approx.) | 150±10 mm |
| Average Discharge Time | 4-5 Sec. | Average Range of throw | 2 m |
| Average Discharge | 98% | Operating Temperature | -30 °C to +55 °C |
| Service/Max. service/Test Pressure | 15 / 35 bar | Expelling Agent | Nitrogen (UHP Grade) |
| Full Weight (Approx.) | 3.6 kg | Empty Weight (Approx.) | 1.6 kg |
| Shipping Weight (Approx.) | 3.7 kg | Mounting Bracket | Ceiling mounting stand |
| Approvals | Any Government approved Lab | Volume Protection | 2.5 m 3 |
| Area Protection | 1-1.5 m 2 |
| MODEL | KMPRQ-5-90 | ||
|---|---|---|---|
| Capacity | 5 kg | Design | Ceiling Mounted |
| Height (Approx.) | 3754 mm | Diameter (Approx.) | 230±10 mm |
| Average Discharge Time | 6-8 Sec. | Average Discharge | 98% |
| Operating Temperature | -30 °C to +55 °C | Service/Max. service/Test Pressure | 15 / 35 bar |
| Expelling Agent | Nitrogen (UHP Grade) | Full Weight (Approx.) | 7.6 kg |
| Empty Weight (Approx.) | 2.6 kg | Shipping Weight (Approx.) | 7.7 kg |
| Mounting Bracket | Ceiling mounting stand | Approvals | Any Government approved Lab |
| Volume Protection | 2-2.5 m 3 | Area Protection | 1.5-2 m2 |
| Hanging Height Above Risk | 2 m |
| MODEL | KMPRQ-10-90 | ||
|---|---|---|---|
| Capacity | 10 kg | Design | Ceiling Mounted |
| Height (Approx.) | 405 mm | Diameter (Approx.) | 300±10 mm |
| Minimum Discharge time | Any Government approved Lab | Average Discharge Time | 10-15 Sec. |
| Average Discharge | 99% | Operating Temperature | -30 °C to +55 °C |
| Service/Max. service/Test Pressure | 15 / 35 bar | Expelling Agent | Nitrogen (UHP Grade) |
| Full Weight (Approx.) | 14.1 kg | Empty Weight (Approx.) | 4.16 kg |
| Shipping Weight (Approx.) | 14.5 kg | Mounting Bracket | Ceiling mounting stand |
| Volume Protection | 10 m3 | Area Protection | 4-5 m 2 |
| Hanging Height Above Risk | 2 m |
| MODEL | KMPRQ-15-90 | ||
|---|---|---|---|
| Capacity | 15 kg | Design | Ceiling Mounted |
| Height (Approx.) | 425 mm | Diameter (Approx.) | 400±10 mm |
| Average Discharge Time | 15-20 Sec. | Average Discharge | 99% |
| Operating Temperature | -30 °C to +55 °C | Service/Max. service/Test Pressure | 15 / 35 bar |
| Expelling Agent | Nitrogen (UHP Grade) | Full Weight (Approx.) | 21.4kg |
| Empty Weight (Approx.) | 6.4 kg | Shipping Weight (Approx.) | 22 kg |
| Mounting Bracket | Ceiling mounting stand | Approvals | Any Government approved Lab |
| Volume Protection | 15 m 3 | Area Protection | 5-6 m 2 |
| Hanging Height Above Risk | 2.5 m |
