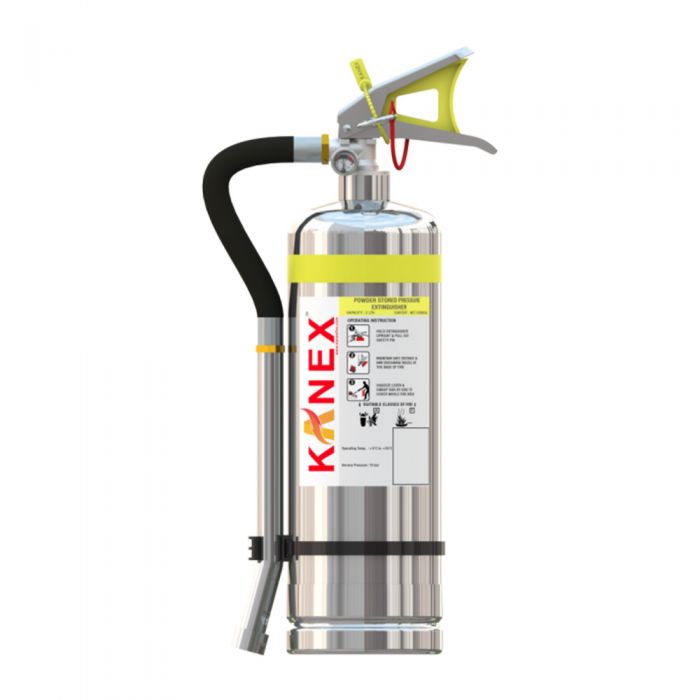

Regular Quality (RQ)
Application Area
⮞ Restaurants
⮞ School Cafeterias
⮞ Hospitals
⮞ Convenience Stores
Key Features
⮞ High quality Wet Chemical Agent
⮞ Unique Gauge Testing System (UGTS) mechanism
⮞ Smooth & polished stainless steel body
⮞ Controlled discharge through brass nickel-plated valve with squeeze operation
⮞ Easy to maintain, recharge & service
⮞ Latest CE marked
⮞ Tamper seal to detect any mishandling
⮞ Anti-corrosive phosphate treatment of cylinders
⮞ Manufactured using durable high-quality materials
⮞ Large loop stainless steel pull pin
⮞ More flexible EPDM hose
⮞ Lever lock for better handling
⮞ Bar code labeling for better traceability
⮞ Aluminum discharge nozzle with broad, dispersed output
⮞ High-volume, low-velocity discharge prevents burning oil splash
Available Sizes
| MODEL | KFKHQ-2 | ||
|---|---|---|---|
| Capacity | 2 Ltr | Design | Hose & Nozzle |
| Fire Rating | 15F | Height (Approx.) | 440 mm |
| Diameter (Approx.) | 110±10 mm | Average Discharge Time | 10 Sec. |
| Average Discharge | 95% | Operating Temperature | +5 °C to +55 °C |
| Service/Max. service/Test Pressure | 10 / 12 / 35 bar | Expelling Agent | Nitrogen (UHP Grade) |
| Full Weight (Approx.) | 3.7 kg | Empty Weight (Approx.) | 1.7 kg |
| Shipping Weight (Approx.) | 4.0 kg | Packing Standard | 2 in 1- 22.5″X6.75″X14.10” |
| Mounting Bracket | Wall bracket | Approvals | CE |
| MODEL | KFKHQ-3 | ||
|---|---|---|---|
| Capacity | 3 Ltr | Design | Hose & Nozzle |
| Fire Rating | 15F | Height (Approx.) | 500 mm |
| Diameter (Approx.) | 140±10 mm | Average Discharge Time | 12 Sec. |
| Average Discharge | 95% | Operating Temperature | +5 °C to +55 °C |
| Service/Max. service/Test Pressure | 9 / 15 / 35 bar | Expelling Agent | Nitrogen (UHP Grade) |
| Full Weight (Approx.) | 5.5 kg | Empty Weight (Approx.) | 2.5 kg |
| Shipping Weight (Approx.) | 5.8 kg | Packing Standard | 2 in 1- 22.5″X6.75″X14.10” |
| Mounting Bracket | Wall bracket | Approvals | CE |
| MODEL | KFKHQ-3 | ||
|---|---|---|---|
| Capacity | 3 Ltr | Design | Hose & Nozzle |
| Fire Rating | 15F | Height (Approx.) | 500 mm |
| Diameter (Approx.) | 140±10 mm | Average Discharge Time | 12 Sec. |
| Average Discharge | 95% | Operating Temperature | +5 °C to +55 °C |
| Service/Max. service/Test Pressure | 9 / 15 / 35 bar | Expelling Agent | Nitrogen (UHP Grade) |
| Full Weight (Approx.) | 5.5 kg | Empty Weight (Approx.) | 2.5 kg |
| Shipping Weight (Approx.) | 5.8 kg | Packing Standard | 2 in 1- 22.5″X6.75″X14.10” |
| Mounting Bracket | Wall bracket | Approvals | CE |
| MODEL | KFKHQ-9 | ||
|---|---|---|---|
| Capacity | 9 Ltr | Design | Hose & Nozzle |
| Fire Rating | 75F | Height (Approx.) | 620 mm |
| Diameter (Approx.) | 180±10 mm | Average Discharge Time | 30 Sec. |
| Average Discharge | 95% | Operating Temperature | +5 °C to +55 °C |
| Service/Max. service/Test Pressure | 9 / 15 / 35 bar | Expelling Agent | Nitrogen (UHP Grade) |
| Full Weight (Approx.) | 13.5 kg | Empty Weight (Approx.) | 4.5 kg |
| Shipping Weight (Approx.) | 14.0 kg | Packing Standard | 1 in 1 – 24.5″X8.0″X8.0″ |
| Mounting Bracket | Wall bracket | Approvals | CE |
