Application Area
⮞ Petrol & Oil Burning
⮞ Machining Operations
⮞ Gas/Fueling Stations
⮞ Paint Processing Areas
⮞ Marine Risks
⮞ Refineries
⮞ Welding Areas
Key Features
⮞ Monnex or potassium bicarbonate urea-based BC powder
⮞ Unique Gauge Testing System (UGTS) mechanism
⮞ CE marked
⮞ Brass chrome-plated valve
⮞ Internally epoxy polyester and externally pure polyester powder coating
⮞ More flexible EPDM hose with reduced crack risk
⮞ Tamper seal to detect any mishandling
⮞ Anti-corrosive phosphate treatment of cylinders
⮞ Large loop stainless steel pull pin
⮞ Lever lock for better handling
⮞ Bar code labeling for better traceability
⮞ Easy to maintain, recharge & service
Available Sizes

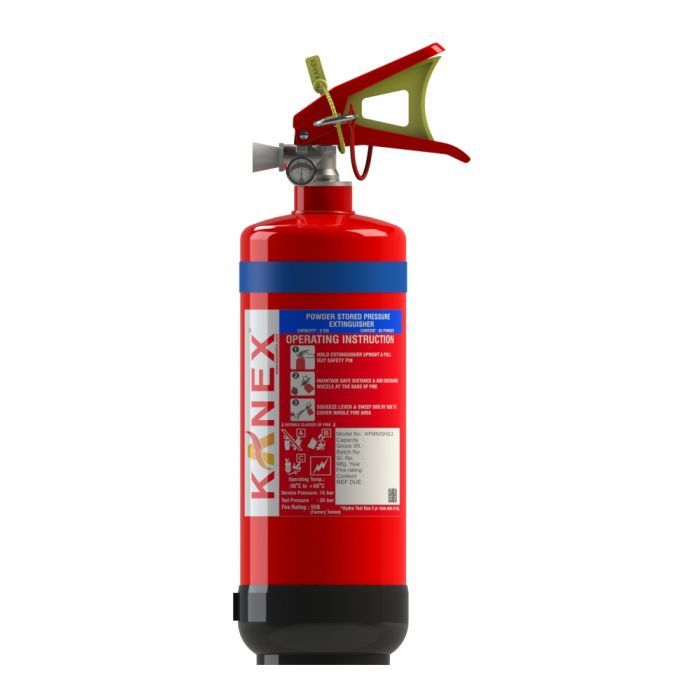

| MODEL | KFMNXSHQ-2 | ||
|---|---|---|---|
| Capacity | 2 kg / 1 kg | Design | Nozzle |
| Fire Rating | 55B* | Height (Approx.) | 380 mm |
| Diameter (Approx.) | 106±5 mm | Average Discharge Time | 10 Sec. |
| Average Range of throw | 3 m | Average Discharge | 92% |
| Operating Temperature | -30 °C to +60 °C | Service/Max. service/Test Pressure | 15 / 18 / 35 bar |
| Expelling Agent | Nitrogen (UHP Grade) | Full Weight (Approx.) | 2.7 kg |
| Empty Weight (Approx.) | 1.7 kg | Shipping Weight (Approx.) | 3.1 kg |
| Packing Standard | Inner-13.75″*4.75″*4.75″ Outer(4 in 1)-16.5″*10″*10″ | Mounting Bracket | Wall bracket |
| Approvals | CE |
| MODEL | KFMNXSHQ-4 | ||
|---|---|---|---|
| Capacity | 4 kg / 2 kg | Design | Hose & Nozzle |
| Fire Rating | 144B* | Height (Approx.) | 490 mm |
| Diameter (Approx.) | 140±5 mm | Average Discharge Time | 16 Sec. |
| Average Range of throw | 5 m | Average Discharge | 92% |
| Operating Temperature | -30 °C to +60 °C | Service/Max. service/Test Pressure | 15 / 18 / 35 bar |
| Expelling Agent | Nitrogen (UHP Grade) | Full Weight (Approx.) | 5.1 kg |
| Empty Weight (Approx.) | 3.1 kg | Shipping Weight (Approx.) | 5.5 kg |
| Packing Standard | 2 In 1-21″*6.75″*14.10″ | Mounting Bracket | Wall bracket |
| Approvals | CE |
| MODEL | KFMNXSHQ-6 | ||
|---|---|---|---|
| Capacity | 6 kg / 4 kg | Design | Hose & Nozzle |
| Fire Rating | 183B* | Height (Approx.) | 530 mm |
| Diameter (Approx.) | 150±5 mm | Average Discharge Time | 21 Sec. |
| Average Range of throw | 6 m | Average Discharge | 93% |
| Operating Temperature | -30 °C to +60 °C | Service/Max. service/Test Pressure | 15 / 18 / 35 bar |
| Expelling Agent | Nitrogen (UHP Grade) | Full Weight (Approx.) | 7.6 kg |
| Empty Weight (Approx.) | 3.6 kg | Shipping Weight (Approx.) | 8.0 kg |
| Packing Standard | 2 in 1-21″*6.75″*14.10″ | Mounting Bracket | Wall bracket |
| Approvals | CE |
